SYMPL INPUT NODE (8 DIGITAL OR 4 DIGITAL & 4 ANALOG) | AB444200035 | TRAXON e:cue
Delivery time
Depending on the supplier - estimated 8-14 days

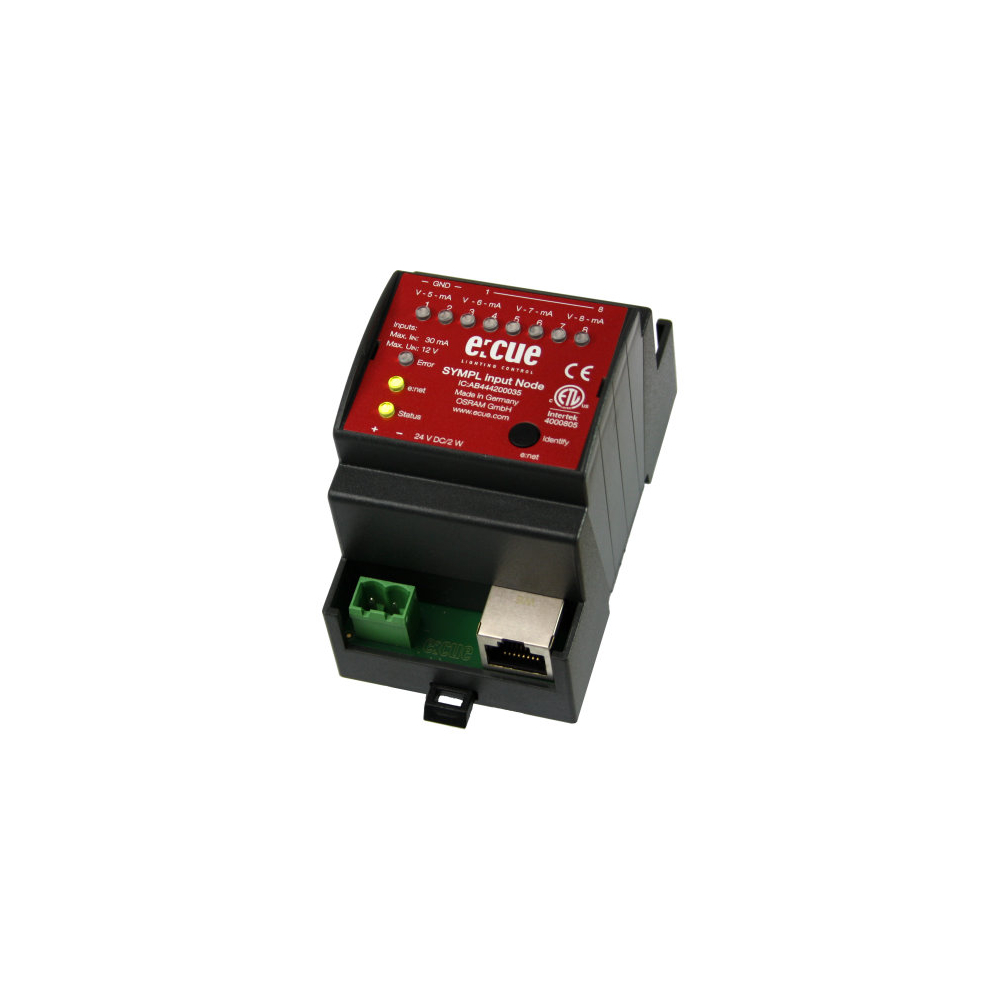

The e:cue SYMPL input Node is an eight-channel analog input interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides eight independent analog 10 V inputs, whereas four of them also support a 20 mA constant current input, which can be configured by operating a slide switch. The e:cue SYMPL input Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. The e:cue SYMPL input Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.
Key features
- Eight analog inputs for 0 to 10 V
- Four inputs switchable to 0 to 20 mA input
- Input configuration with a slide switch
- Flexible mounting onto 35 mm DIN rails or vertical surfaces
- Simple and easy integration into e:cue SYMPHOLIGHT
- Separate webinterface for configuration
| Manufacturer | TRAXON e:cue |
|---|
