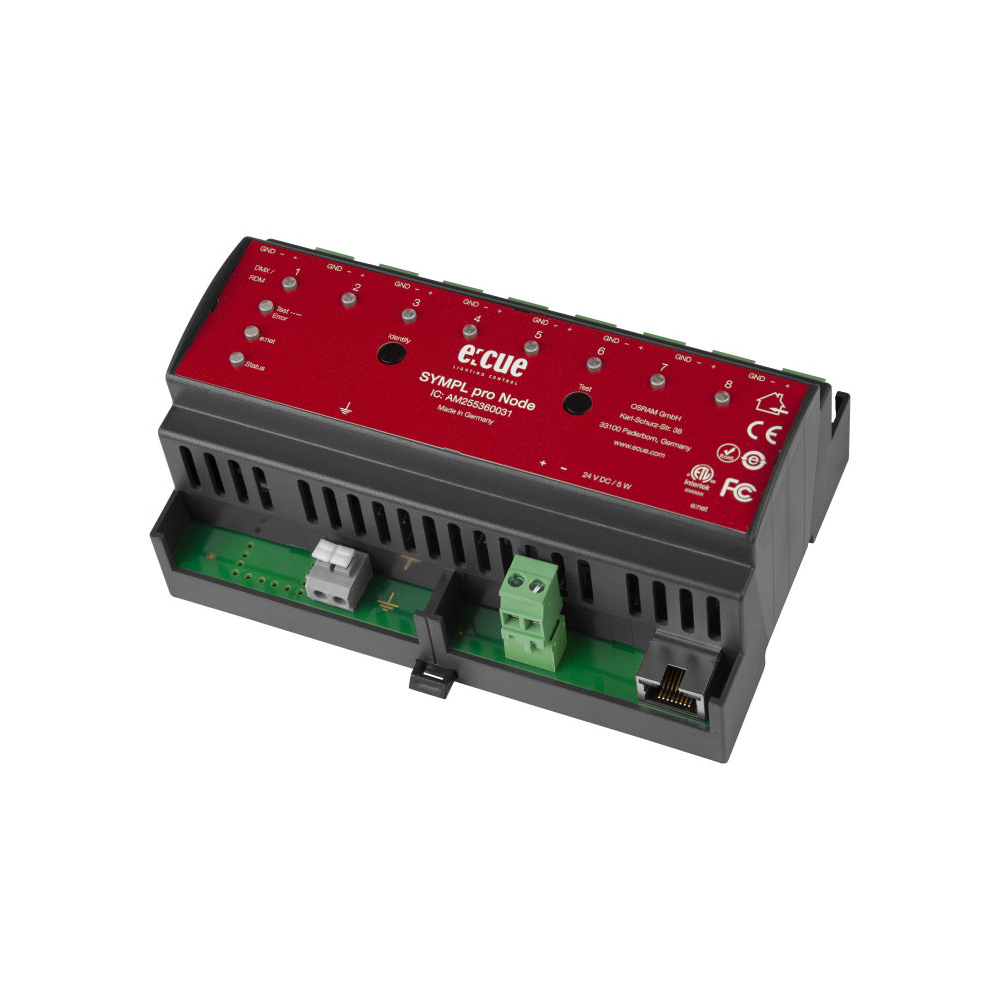

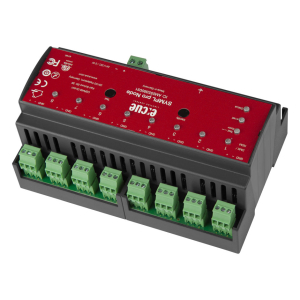

SYMPL E:PIX PRO NODE (8 PORT, CE & ETL) | AM305690031 | TRAXON e:cue
Delivery time
Depending on the supplier - estimated 8-14 days
The new smart DMX/RDM controller for state-of-the-art lighting control projects has been specifically designed with tough outdoor environments in mind.
The SYMPL pro Node is an eight-channel DMX / e:pix and RDM interface for use with e:cue’s lighting control solution SYMPHOLIGHT. It provides eight independent DMX/RDM interfaces for eight DMX512 universes with 4096 channels. Also available as e:pix version (16384 channels). The SMYPL pro Node is especially designed for projects in tough outdoor environments. Connection to the server runs via Ethernet interface with 100 Mbit/s. The SYMPL pro Node can be powered by an external power supply or via Power-over-Ethernet. It is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The SYMPL pro Node is a simple, reliable and easy to use interface solution for e:cue lighting control solutions with SYMPHOLIGHT.
Key features
- 8 outputs for DMX512/RDM or e:pix (dependent on model)
- Isolated outputs up to 3,75kV
- Integrated protection against surge (Level 3)
- Protection against miswiring
- Extended operating temperature -40 - 70°C
- Embedded temperature and humidity sensors
- Reverse polarity protection
- Backup-mode on data loss
- Power-over-Ethernet
- Test mode access via button
- Web interface for status and configuration
- Simple and easy integration in e:cue SYMPHOLIGHT and LAS
- Flexible mounting on 35 mm DIN rails or vertical surfaces
| Manufacturer | TRAXON e:cue |
|---|
